The Key Parts of the Actuator choose Hest

I. User Introduction

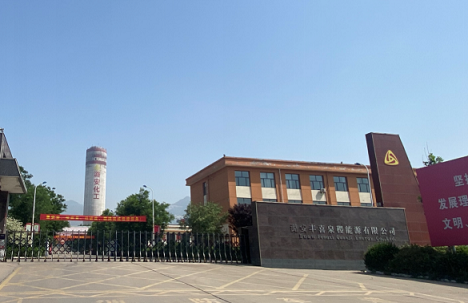

Shanxi Lu'an Fengxiquanji Energy Co., Ltd. is one of the key enterprises of Jishan County provincial new industrialization industry demonstration base. The company was established in November 2013 and covers an area of approximately 1200 acres.

It is a key project implemented during the 13th Five Year Plan period for the comprehensive utilization of Jishan coke oven gas to produce urea and LNG, with a production scale of 240000 tons of synthetic ammonia, 400000 tons of urea, and 63000 tons of LNG annually.

荷思特控制技術(蘇州)有限公司

II. Situation of on-site boiler water supply system

Boiler water supply is one of the crucial links in the operation of boilers, and its stability and reliability are directly related to the stability and safety of the entire boiler system and even the production and operation of the entire enterprise.

荷思特控制技術(蘇州)有限公司

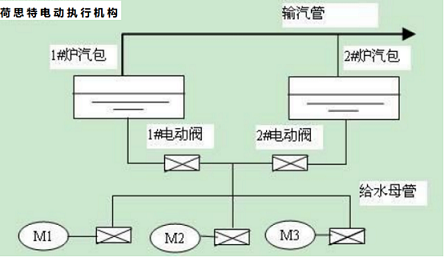

Shanxi Lu'an Fengxiquanji Energy Co., Ltd. uses a boiler with a rated evaporation capacity of 220t/h; The boiler adopts cascade three impulse control.

To ensure that the water level of the steam drum is within the specified range, it is necessary to adjust the opening of the pipeline valve to change the feed water variable to maintain the water level of the steam drum within the specified range. The on-site water supply pipeline valves use DN300 electric gate valves with a pressure rating of 4Mpa, and the electric regulating valves on the steam drum use DN300 electric gate valves with a pressure rating of 10Mpa.

荷思特控制技術(蘇州)有限公司

In response to the phenomenon of an imported brand's electric actuator being unable to open and close normally due to aging, jamming, and other issues. At the end of 2022, the owner decided to replace the regulating electric actuator used for the on-site boiler feed water valve and high- temperature and high-pressure steam valve. After careful research and comparison of the usage situation of similar enterprises at home and abroad by the technical supervisor of Quanji Energy, it was finally decided to use HEST intelligent frequent regulating electric actuator.

III. On site installation and debugging situation:

With a highly responsible attitude towards the owner, our technical personnel visited the site twice before the owner placed and order to determine the connection method and torque size. On May 15, 2023, HEST technical personnel arrived at Lu'an Fengxiquanji Company. After discussing with on-site production process personnel and equipment technicians, the installation plan was determined. On May 16, the installation and debugging were completed, and on-site maintenance personnel from the owner were trained. Our products and professional service capabilities have been highly recognized by the owner.

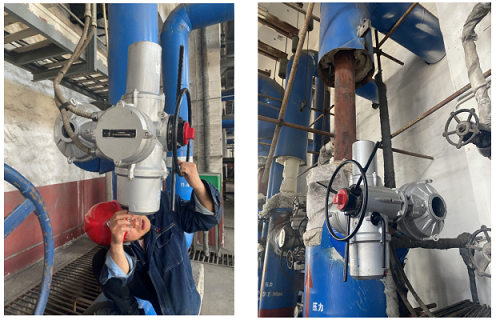

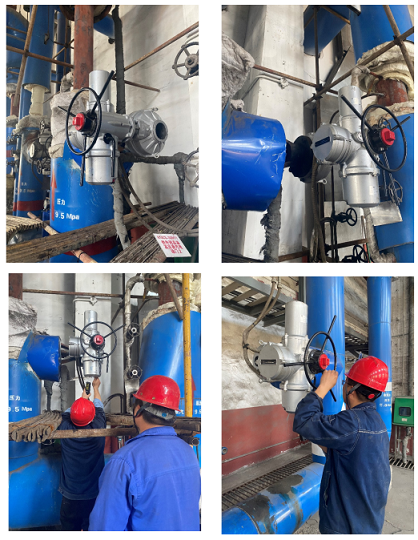

The following are on-site installation pictures:

荷思特控制技術(蘇州)有限公司

After replacing with the HEST intelligent frequent adjustment electric actuator, Lu'an Fengxiquanji Company has achieved stable equipment performance, ensuring stable boiler water supply adjustment and greatly reducing maintenance. The controlled object has stable water supply, greatly ensuring production safety and stability.
